F10080C

Airport Checkpoints Cargo Screening

– High Definition Image
– Dynamic Processing
– Intelligent Alarm
– Self-Diagnose
– Shutdown With One Key

Contact Us

Product Introduction

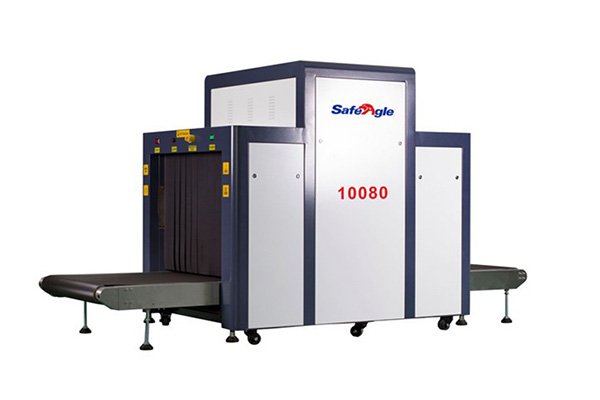

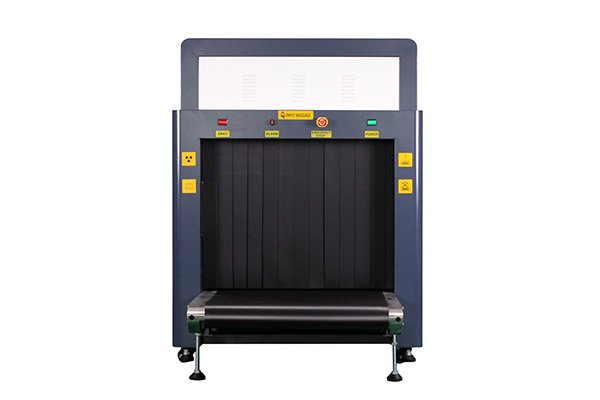

Safeagle F10080C luggage security x ray machine is designed to detect prohibited items and threats by screening big bags and heavy package at security checkpoints. Ideal for using at public area, such as checkpoint, shopping mall, customs, port, gym, warehouse and more. 10080 is a great choice for large venue and support bidirectional operation.

General Specification

Tunnel Size ………………… 1005*800mm
X-ray Sensor ………………  Multi-energy
Max. Load …………………   200 kg(Evenly distributed)
Conveyor speed …………  0.22m/s
Conveyor height ………… 370mm
Image Resolution ………  21.5”LCD 1920*1080
System Noise ……………   <58 dB
Film safety …………………  Guarantee ISO 1600 Film
System Voltage …………   220 VAC (±10%) 50±3HZ
Power Consumption …   0.8kw (Max)

Standard Features

• High Definition Image
  Adopt new generation of HD schema design, providing clear images and stable performance.
• Dynamic Processing
  Real-time display, optimization functions like edge enhancement, amplification and so on.
• Image Management
  Built-in image management system, which enables users to browse saved images quickly.
• Intelligent Alarm
  User can set the alarm threshold, and realize acousto-optic alarming prompt when the impermeable items are detected.
• Green Lead Curtain
  Wear-resistant, pollution-free, long service life.
• Self-Diagnose
  Automatically prompt when failure is detected, and be convenient to maintain.
• Shutdown With One Key
  When you try to turn off the equipment, just rotate the key, which is convenient and simple.
• Network Interface
  Use standard Ethernet port to transmit images with rapid processing and great anti-interference performance.
• Intelligent Roller
  Roller will automatically rotate when there is luggage on the conveyor belt, otherwise, the roller will stop rotating making this product environmental-friendly and energy-saving.
• Threat Image Protection
  TIP is fully configurable by high level users, where parameters such as type of threats, frequency of projection etc. can be configured.
