F6550D
Airport Checkpoints Cargo Screening
– High Definition Image
– Dynamic Processing
– Intelligent Alarm
– Self-Diagnose
– Shutdown With One Key
Product Introduction

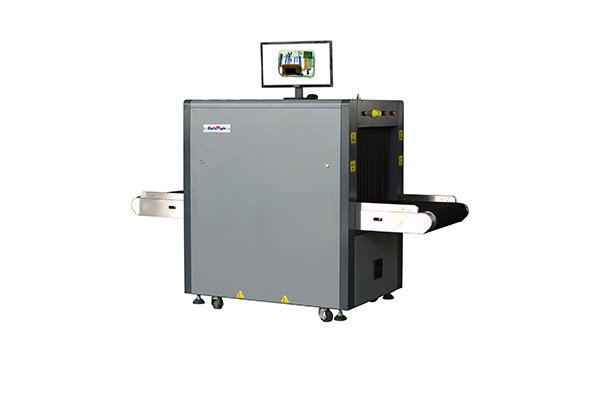

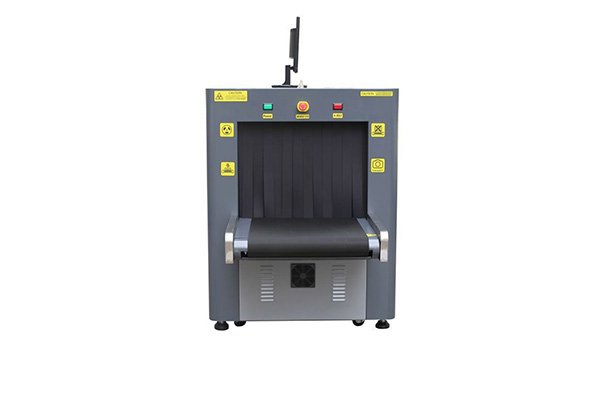

Safeagle F6550D Dual View x ray baggage inspection system can display horizontal and vertical images by two independent generators, which can identify overlapping articles and contraband easily and precisely. Ideal for using at public area, such as museums, embassies, court, metro station and more. 6550 is a great choice for mail, parcels, handbags, briefcases, baggage scanning, which fits well into any entrance environment.
General Specification
Tunnel Size ………………… 655*505mm
X-ray Sensor ……………… Multi-energy
X-ray Direction…………… Downward and Sideward
Max. Load ………………… 170 kg(Evenly distributed)
Conveyor speed ………… 0.22m/s
Conveyor height ………… 630mm
Image Resolution ……… 21.5”LCD 1920*1080
System Noise …………… <58 dB
Film safety ………………… Guarantee ISO 1600 Film
System Voltage ………… 220 VAC (±10%) 50±3HZ
Power Consumption … 2kVA (Max)
Standard Features
- Twin-channel Detection System
Twin-channel data acquisition and transmission technology to process and display the images from different angle scanning synchronically. - High Definition Image
Adopt new generation of HD schema design, providing clear images and stable performance. - Dynamic Processing
Real-time display, optimization functions like edge enhancement, amplification and so on. - Image Management
Built-in image management system, which enables users to browse saved images quickly. - Intelligent Alarm
User can set the alarm threshold, and realize acousto-optic alarming prompt when the impermeable items are detected. - Green Lead Curtain
Wear-resistant, pollution-free, long service life. - Self-Diagnose
Automatically prompt when failure is detected, and be convenient to maintain. - Shutdown With One Key
When you try to turn off the equipment, just rotate the key, which is convenient and simple. - Network Interface
Use standard Ethernet port to transmit images with rapid processing and great anti-interference performance. - Intelligent Roller
Roller will automatically rotate when there is luggage on the conveyor belt, otherwise, the roller will stop rotating making this product environmental-friendly and energy-saving. - Threat Image Protection
TIP is fully configurable by high level users, where parameters such as type of threats, frequency of projection etc. can be configured.
Compliance
- CE compliance
Directive 2004/108/EC Electromagnetic
Directive 2006/42/EC Machinery
Directive 2006/95/EC Low Voltage - ISO9001 Quality Management System
- ISO14001 Environment Management System
- OHSAS18001 Occupational Health Management System
Applications
International events, Government building, Railway station, Metro station etc.
Installation Sites
The govenment building in China
The Embassy in East Timor
