HP-SE6040C
Airport Checkpoints Cargo Screening
– Switchable 4/7 Color Imaging
– Top-ranking Multi-energy Imaging
– Meticulous Material Discrimination
– Bidirectional Full Tunnel Scanning
– Explosive and Narcotics Detection
Product Introduction

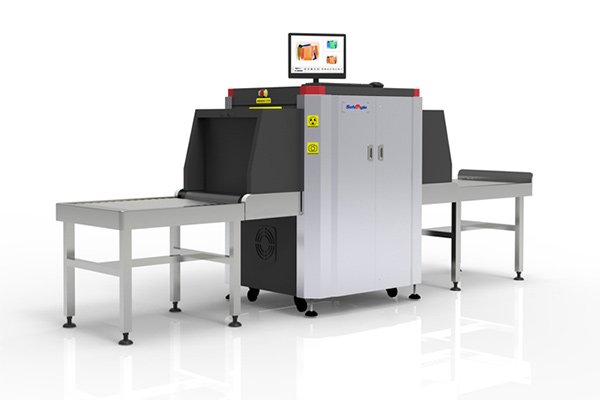

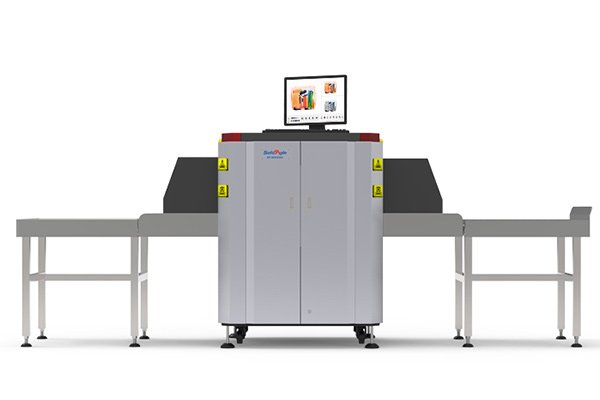

Safeagle HP-SE6040C is New Generation Series x ray baggage inspection system which offers high performance threat detection. With tunnel opening size of 630mm x 425mm, can accommodate a range of parcel and baggage size for hotel, events, police office, court, airport and more. TheSE6040dual-energy detection provides material discrimination alert so that screeners can identify the material composition of the scanned object.
General Specification
Tunnel Size ………………… 630*425mm
X-ray Sensor ……………… Multi-energy
Max. Load ………………… 165 kg(Evenly distributed)
Conveyor speed ………… 0.23m/s
Conveyor height ……… 710mm
Image Resolution ……… 21.5”LCD 1920*1080
System Noise …………… <58 dB
Film safety ………………… Guarantee ISO 1600 Film
System Voltage ………… 220 VAC (±10%) 50±3HZ
Power Consumption … 0.8kw (Max)
Image zoom …………….. zoom 1, 2 – 3 – 64x
