– Professional Own R&D HD Line Scan Camera System
– 180° Wide Angle Scanning For The Chassis
– Fast Imaging Can Storable And Retrospective
– Up to 80km/h Built-in Speed Measurement Function
– IP68 Protection Level

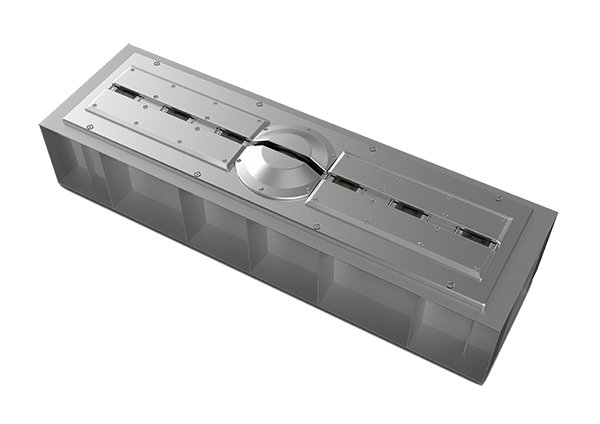

SE-UVIS200 (Fixed Type) Under Vehicle Inspection System (UVIS) adopts advanced HD line scan camera to scan the vehicle chassis, which can display HD images via intelligent algorithms such as image mosaic, sharpness, etc. The system can effectively prevent security risk of bombs, weapons, dangerous biochemicals and individuals from accessing important places with high protection level such as governments, military areas, bank reservoirs, stations, checkpoint and wharfs.
Type………………………………………Fixed
Scan mode…………………………… Automatic
Water-proof grade…………………IP68
Resolution…………………………… 2048 pixels, 18kHz
lllumination Module……………… 6 single sealed 80W LED area, lights with life span ≥60000h
Vehicle Speed……………………… advise ≤50km/h, maximum reach up to 80km/h
Field of View………………………… 180°
Height of Vehicle Chassis……… 60mm-2000mm
Width of Vehicle Chassis…………≤4500mm
Installation Area…………………… about 1200*360*290mm
Operating temperature………… -35ºC to 70ºC
1. Airport, prison house, customs and other government departments ,as well as the large public parking entrance where to check whether the car have Contraband.
2. Large events, and the checking of entrance of the exhibition for the safety inspection of vehicles.
3. Using for Security inspection, explosion-proof, army vehicles at the bottom.
