– Temperature Screening+Auto Dispenser+Touch Screen Control (3 in 1)
– Plug And Use Easy Operation
– 1.1m Sensor Hight For Both Wrist And Forehead Detection
– Adopts STM Program Prevent High-Temperature False Alarm
– Accept Voice Language Customization
SE-20109 Infrared human body temperature detector machine combines a professional Touch Screen and a built-in high precision infrared temperature sensor, which can quickly measure temperature in the detection area to ensure accurate and efficient temp. Users only need to place their wrist or forehead near the detection point can quickly and accurately identify their temp. And after auto-distinguishing the temp-value, it will not fluctuate with the distance, and the stability is excellent. It can be targeted at dense crowds in public places to realize non-contact measurement and screening. Personnel who encounter abnormal temp. can be detected immediately and emergency measures.
| No. | Technical Standard | Technical Parameter | ||
| 1 | Display | 7 Inch Touch Screen Control Display | ||
| 2 | Sensor Height | 110cm (customizable) | ||
| 3 | Sensor | 1 Sensor | ||
| 4 | Data Display | Real-time display of temperature | ||
| 5 | Alarm Temperature | ≧37℃(adjustable) | ||
| 6 | Test Position | Forehead and Wrist | ||
| 7 | Accuracy | ±0.3℃ (within 5 cm) | ||
| 8 | Temperature Unit | Celsius Degree/Fahrenheit(Adjustable) | ||
| 9 | Pass Rate | 60person/minute | ||
| 10 | Language | English(customizable) | ||
| 11 | Volume | Adjustable | ||
| 12 | Fully Integrated Design | Free installation | ||
| 13 | Product Size | 410(L)x1600(H)x290(W)mm | ||
| 14 | Material | SPCC(Durable) | ||
| 15 | Certificate | CE, Temperature Accuracy Calibration Certificate, ISO14001 · ISO9001 · OHSAS18001 | ||
| 16 | N.W./G.W. | 20kg/25kg | ||
| 17 | Packing Size | 1670*480*380mm /ctn | ||
| 18 | Working Environment | Working-Temp | -20~45℃ | |
| Humidity | ≤90%(RH) | |||
| Working Voltage | AC100-240, 50~60 Hz | |||
| Location | Indoor, Semi-outdoor, no sunlight | |||
| 19 | Warranty | 12 month | ||
| 20 | Application | Train Station, School, Hospital, Office Building, etc. | ||

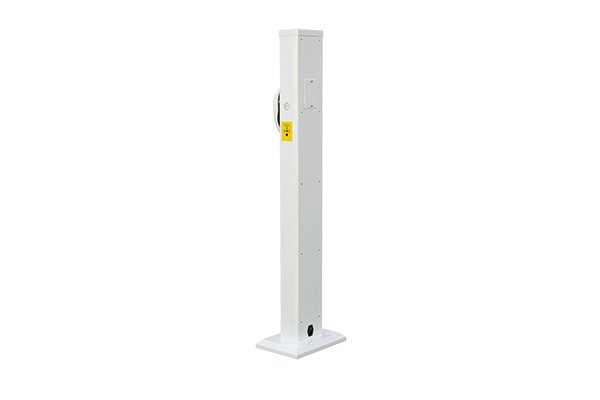

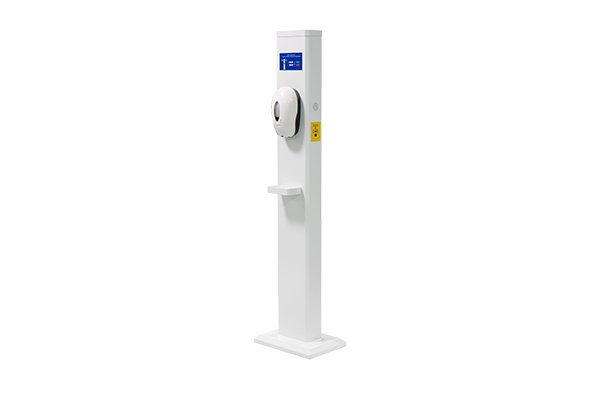

Safeagle SE20109 Infrared Human Body temperature detector column with disinfection machine
Widely used in various public places and various places where body temperature control is required, like school, community, office building, hotel, hospital, etc…
Integrated the terminal equipment & non-contact disinfection device as a whole set, the overall appearance is elegant, high practicality; easy plug-and-play, which is very convenient and flexible for installation; reserved data interface location, convenient for data import and output.
