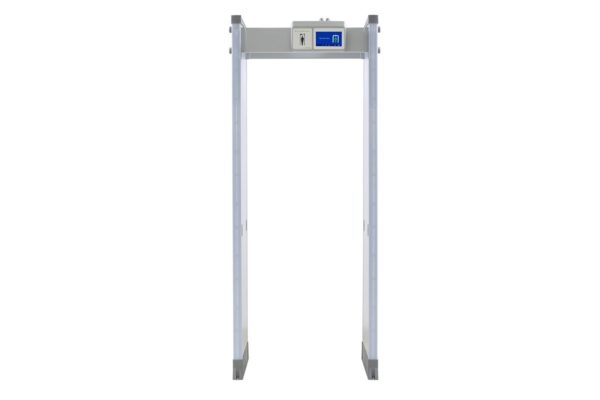

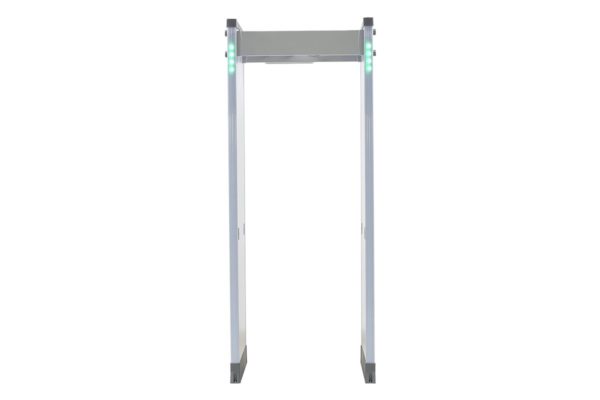

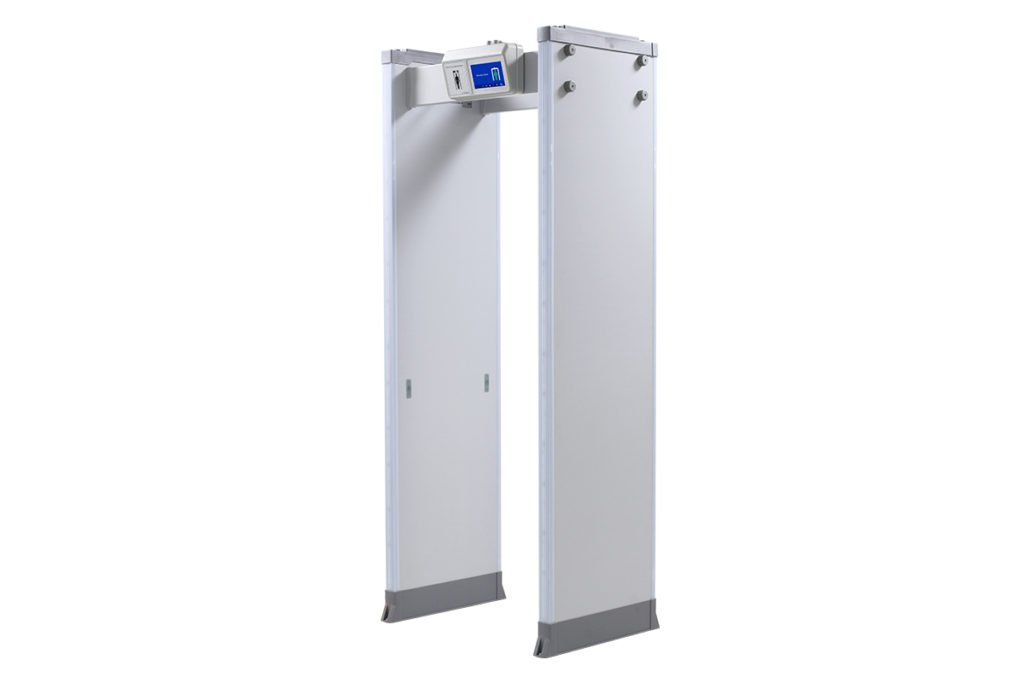

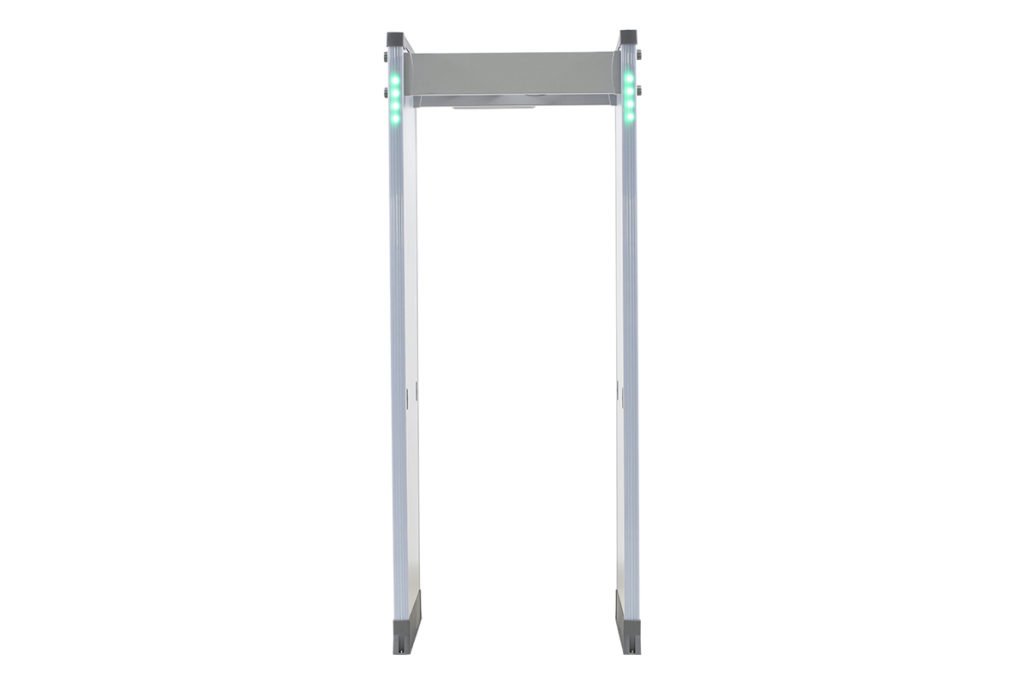

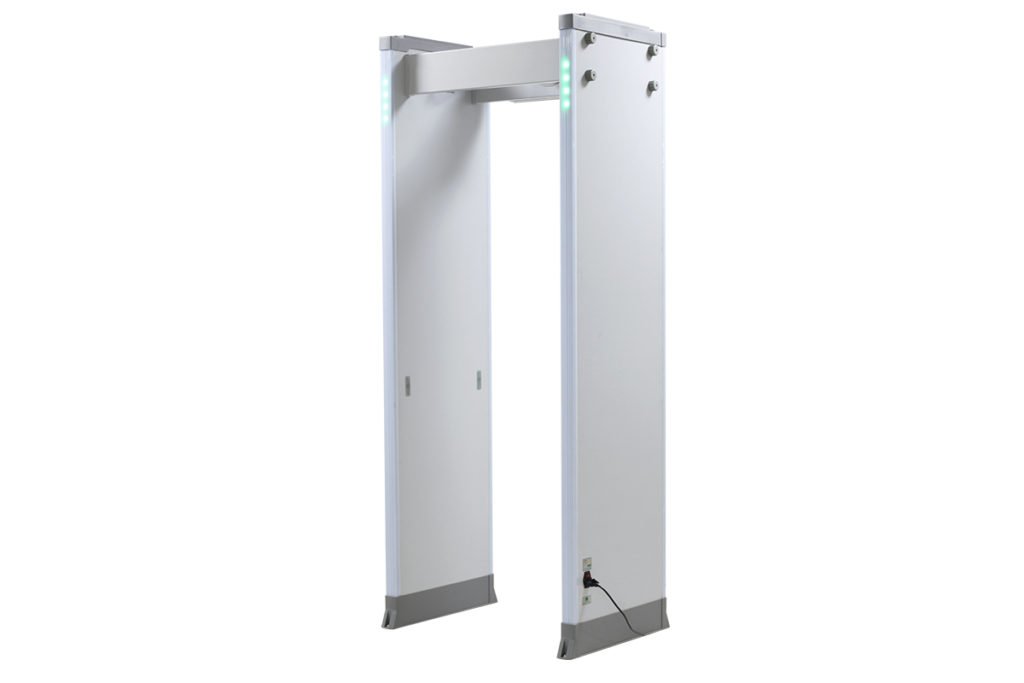

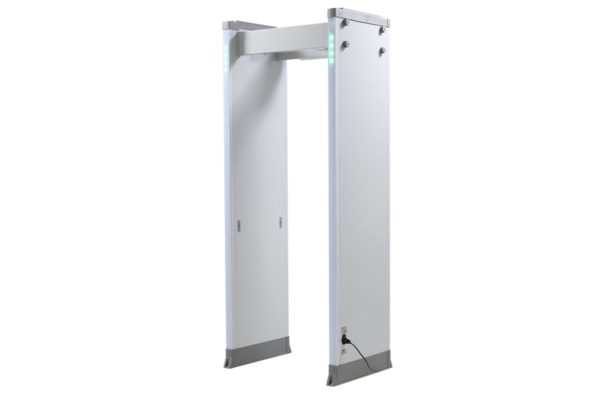

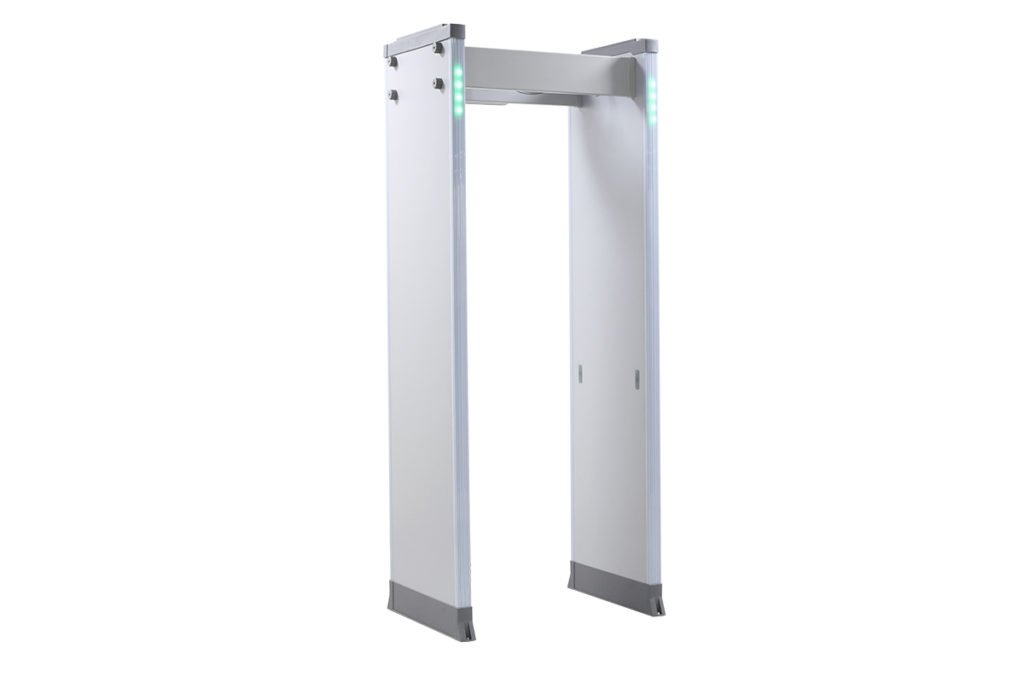

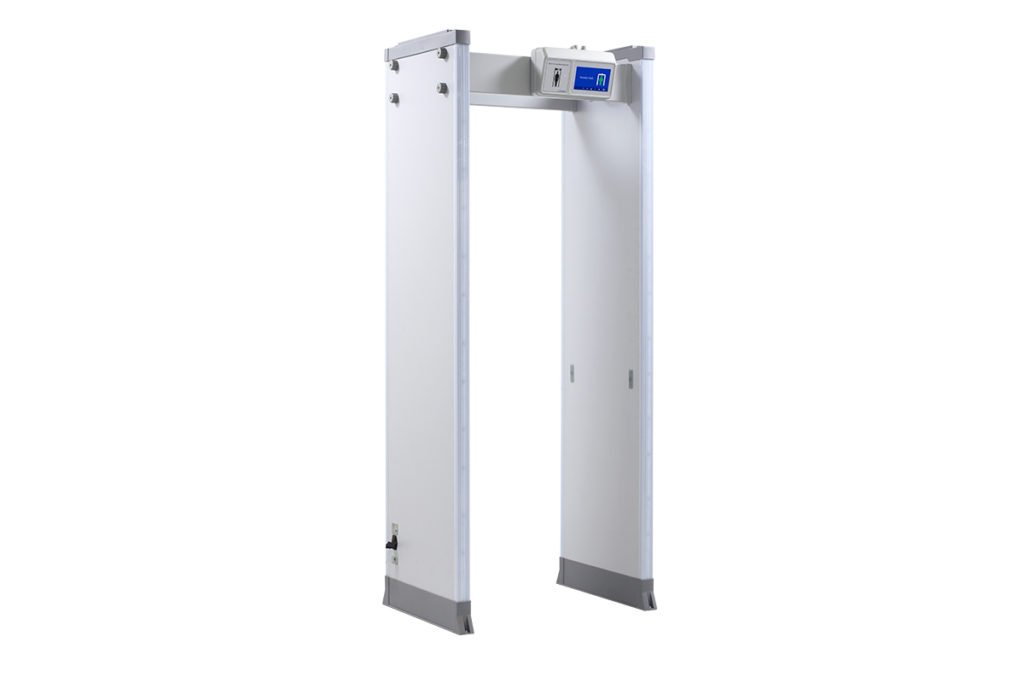

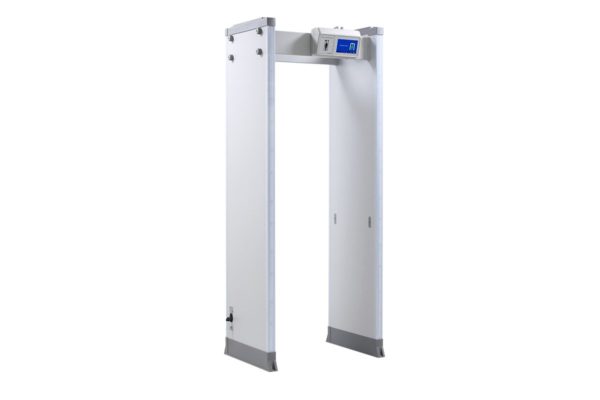

SE3308

Walk Through Metal Detector

– Unmatched Anti-interference Performance
– High Discrimination and Throughput
– Bi-directional Detection and Counter
– Full-module Design for Easy and Rapid Assembly
– Accurate Pinpointing of the Individual and Multiple Metal Targets

Contact Us

Product Introduction

The high-end model SE3308 is a multiple-zone WTMD specifically designed for very high sensitivity applications, such as correctional institutions and industrial loss prevention. It provides pinpointing of individual and multiple metal targets from the shoe level to the crossbar, detects and visually indicates the location and number of possible threat objects. This detector features one-touch self installation, a function that aids in setting up the detector through an automated step-by-step procedure.

General Specification

Sensitivity Level: 500 grades(adjustable)

Distinct Sensitivity Level: 1000 grades(adjustable)

Power Consumption: <20 W

Security Detection Program: 60(built-in)

Pass through Rate: 0.4m/s~1.2m/s

Working Frequency Range: 1~99 bands

Net Weight.: 68kg

Vertical Channel Size: 2010 x 760 mm

Vertical Dimension: 2210(H) x 860(W) x 670(D)mm

Working Voltage: 100~240VAC, 50~60 Hz

Working Environment Temperature:-10℃-+45℃

Advanced Features

• Touch screen: 7-inch HDMI LCD touch screen, easy to operate and understand.
• 33 independent zones available to choose, more accurate detection of dangerous goods.
• Adjustable sensitivity of each detection zone, multi-alarm sounds to choose
• Operating frequency can be adjusted manually or automatically
• Detection technology: Even detection technology, no blind spot
• Internet technology: Remote upgrade system and remote control system
• Statistics: Record the pass and alarm numbers
• Query function: The system has real-time information query function
• Intelligent Standby: The system has intelligent standby operation alerts
• Detection speed: more than 60 people pass and detect in 1 minute
• Intelligent partion: Can change detection zones according customers’ demands
• Have 4 kinds infrared mode: IR ON/IR OFF/Front group IR ON/Back group IR ON
• We integrated 90 application occasions in the program, can change all zones,sensitivity when you choose different occasion
• No harm to human body with heart peacemaker, pregnant women, magnetic floppy and recording tapes

Compliance

• CE compliance
• ISO9001 Quality Management System
• ISO14001 Environment Management System
• OHSAS18001 Occupational Health Management System

Applications

Airport, port, travelling check point
Conference, stadium, access control, court, visiting check point
power plant, factory, hotel, restaurant, entertainment, power venue, KTV, temple

Installation Sites

Dapeng music beach in Shenzhen China
Exhibition in Guangzhou China
Government office in Australia
Museum in Poland
