SEDT-N1

Temperature Screening Sterilization Disinfection Gate

– Non-contact & Mask Detection
– Intelligent Sterilization System
– Temperature Threshold Set
– Fever Alarm Messaging(Optional)
– PC Network Data Control(Optional)



Contact Us

Product Introduction

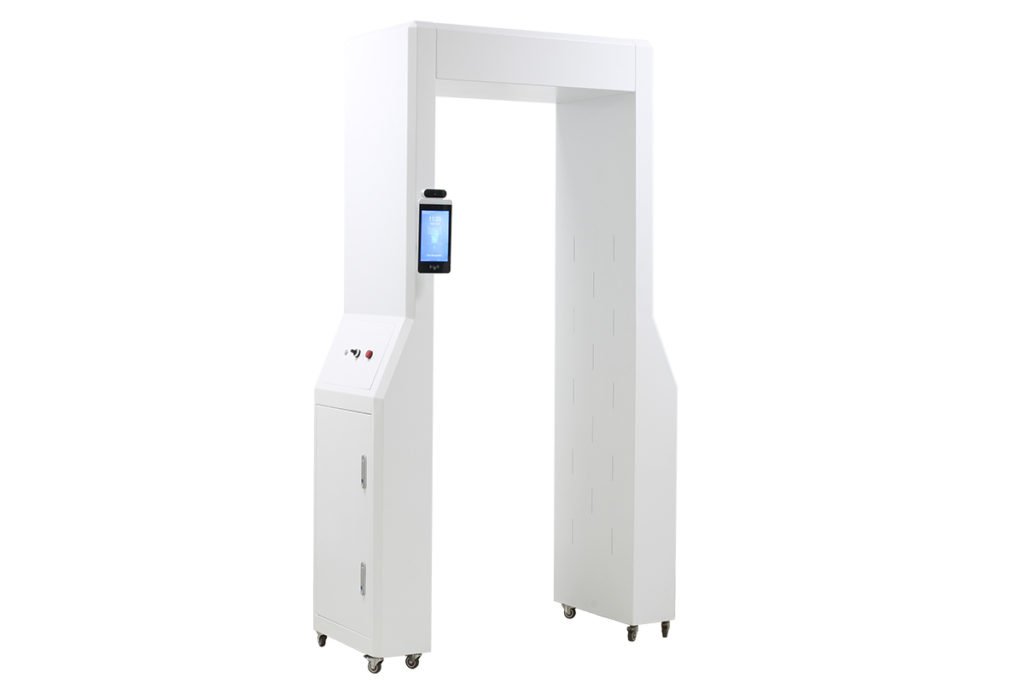

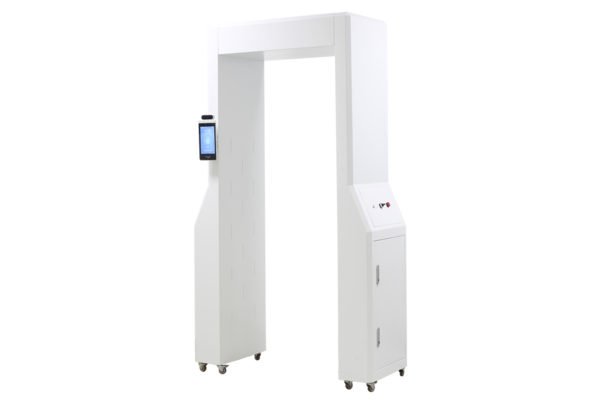

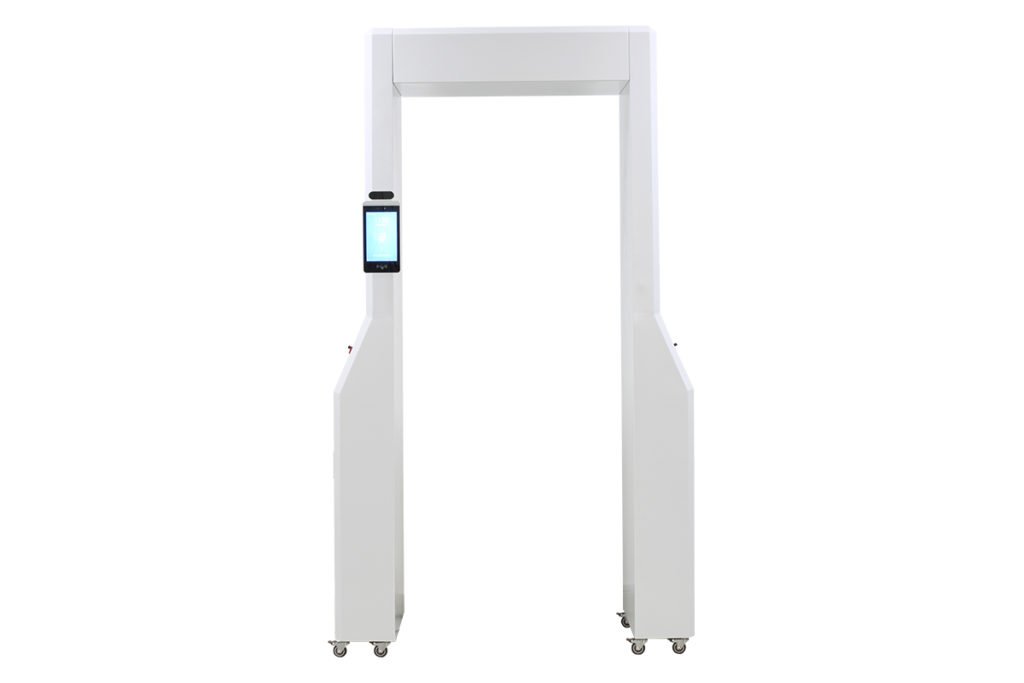

Safeagle SEDT-N1 Sterilization Disinfection Gate is the newest design model especially for body temperature measurement and body disinfection at the entrance, integrated with face recognition temperature detection system, plug and play directly, 360-degree sterilization, non-contact rapid temperature screening in crowded places, no-stop, real-time alarming for suspected fever people, also can track the access records with temperature information anytime.

Parameters

Face Recognition System

  1. Detection Distance…..: <3 m, <0.7 standard
  2. Sensing Height…………: within 1.90m
  3. Temperature Display…: real time
  4. Alarm……………………..: ≧37.3℃ (adjustable)
  5. Temperature Unit…….: Celsius and Fahrenheit
  6. Deviation………………..: ±0.3℃
  7. Passing Rate……………:70 Persons/minute
  8. Dimension………………: 410*290*1850mm

Disinfection Tunnel

  1. Tunnel Size……………….: 2002(H)x840(W)mm
  2. Tank(2) Volume…………….: 15L/tank/hour(Min.)
  3. Spray Jet Pitch-row………..: 100mm
  4. Spray Velocity…………….: 1~10 gear
  5. Material………………….: Zinc Coated Steel
  6. Passing Rate………………:70 Persons/minute
  7. N.W………………………: : 77kg
  8. Dimension…………………: 2202(H)x1280(W)x550(D)mm
  9. Output……………………: 48V
No. Technical Standard   Face Recognition Temperature Detection System
1 Camera Type/Aperture/Resolution RGB+Infrared Sensor/4.0mm/200W
2 Tablet Screen and Resolution 8-inch, full-view IPS LCD screen,1280*800,brightness 400cd
3 User Management Add/delete people on background software
4 1:N Face recognition Support 1 in 10,000 mis-recognition rate, 99% pass rate
5 Local (offline use) Local 20000 face database
6 Processor/RAM/Local storage CPU 4 core RK3299/DDR3-4GB/8GB
7 IP level IP64,support water-proof & dust-proof & outdoor use
8 Device Interface Thermometry Area, Temperature reading, Device information, registered person counting and information.
9 Certificate CE Approved,ISO14001 · ISO9001 · OHSAS18001
10 1:N Face recognition Support 1 in 10,000 mis-recognition rate, 99% pass rate
11 Switchable Multi-language English, French, German, Italian,Cantonese,Japanese, Spanish
12 Application(Indoor) Train Station, School, Hospital, Office Building, etc.
13 Package Size-Carton 1950*440*560mm, 29kg/32kg
14 7 Ports 1.All the way audio line out; 2. USB2.0 micro; 3. 2 RS232 interfaces, 1 WG input, 1 WG output; 4. 2.5mmX2PIN Wiegand Iinterface; 5. Side holes, external buttons Reset Interface; 6. 1 way OTG interface
15 Voice Setting 0-10 Close/open temp. reading   Close/open temp.detection
16 Static Electricity 4K/8K Periodically delete face data   Close/open mask detection
17 Infrared Fill light Green/Red Temperature compensation   Close/open fever alarming
18 Ambition Temp. 20~40℃ Voice broadcasting   Close/open stranger detection
19 Humidity 10%~90% Bulk data load and export with temp. value, date, face, name…
20 Power DC12V, 5W max Support wired networking, 2.4G wifi, 4G network card
21 Warranty 12 months Support simultaneous detection and tracking of 5 people
22 Location Indoor awning indoor or semi-outdoor, and avoid rain and direct sunlight.

Note:

The SEDT-N1 is the preliminary temperature screening and disinfection system, which does not diagnose if someone has corona-virus, but could help determine if someone has an elevated temperature and needs further attention or detection.

Product Certification

Product Certification

Production workshop
