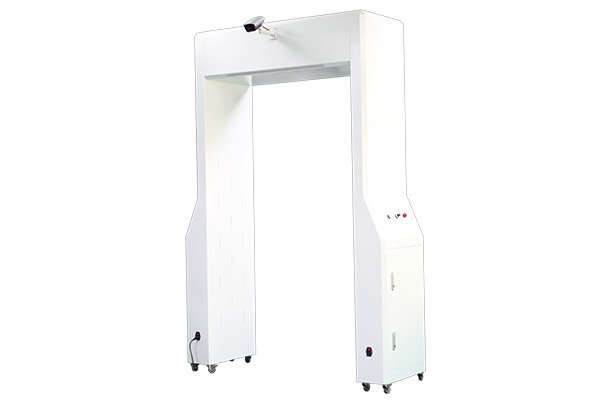

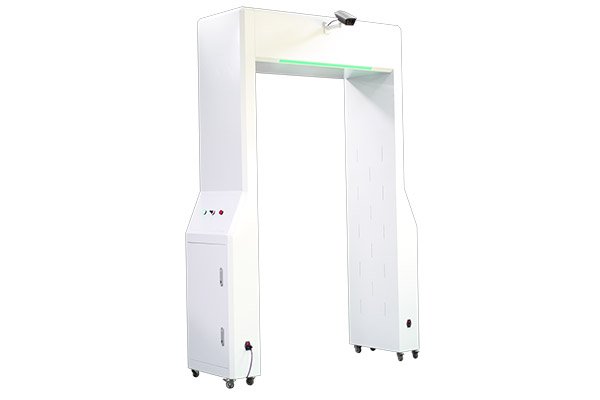

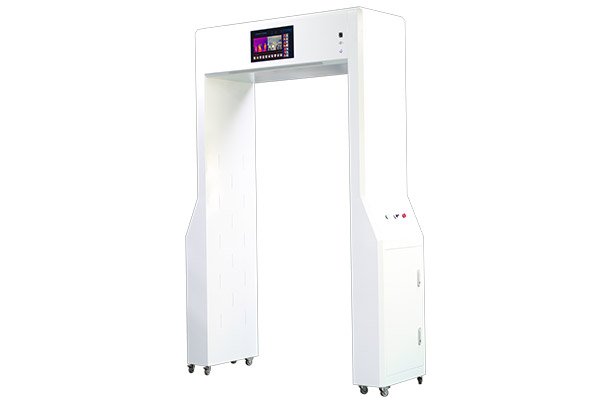

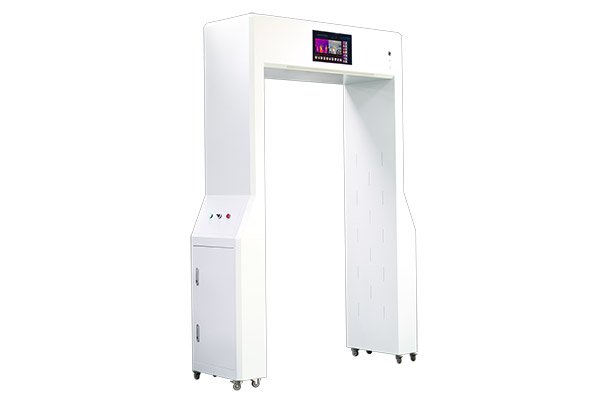

SEDT-N2
Thermal Camera Sterilization Disinfection Gate
– AI Remote Temperature Detection (Max5m)
– Intelligent Sterilization System
– Full Screen Spot Temperature Measurement
– Automatic spray system
– High Thermal Sensitivity ≤50mK
Product Introduction
Safeagle SEDT-N2 Thermal camera Sterilization Disinfection Gate is the newest design model especially for body temperature measurement and body disinfection at the entrance, integrated with a thermal camera system, plug and play directly, 360-degree sterilization, non-contact rapid temperature screening in crowded places, no-stop, real-time alarming for suspected fever people, also can track the access records with temperature information anytime.
Parameters
Disinfection Tunnel
1. Tunnel Size………………..: 2002(H)x840(W)mm
2. Tank(2) Storage Volume………….: 15L/tank(two sides)
3. Spray Jet Pitch-row……..: 100mm
4. Spray Velocity…………….: 1~10 gear
5. Consumption…………….: 1 hour(Min.) at 10 gear keep spraying
6. Material…………………….: Zinc Coated Steel
7. Passing Rate……………….:70 Persons/minute
8. N.W…………………………..: 150kg
9. Dimension…………………: 2302(H)x1280(W)x550(D)mm
10. Output…………………….: 48V
| Thermal Camera | Visible Light | |||
| Appearance | Aviation aluminum packaging binocular thermal imaging | Sensor Type | 1/28 inches CMOS | |
| Type of Use | Temperature Detection | Maximum Resolution | 1920*1080 | |
| Sensor Type | VOx Uncooled Thermal Sensor Technology | Pixe / SNRl | 200W/＞56dB | |
| Effective Pixel | 320*240 | Horizontal Resolution | ≥1100TVL | |
| Pixel Size | 17µm | Gain Control | Automatic | |
| Spectral Range | 8µm~14µm | DEFOG | Electronic through fog | |
| Thermal Sensitivity(NETD) | ≤50mK at f/1.0 | Electronic Shutter | 1s~1/30000s | |
| Focal Length | 6.52mm | Focal Length | 4mm | |
| Angel of View | H:34.4°
V:25.8° |
Angel of View | H: 84°
V: 45° Opposite angles: 99° |
|
| Focus Control | Athermalization | Wide Dynamict | DWDR | |
| Lens Aperture | F1.0 | Optical Lens Aperture | F2.0 | |
| Image Intensification | Support | Strong Light Inhibition | Support | |
| Electronic amplification | Support | Exposure Compensation | Support | |
| Thermal imaging Gain Control | Automatic | Visible Focusing Mode | Manual | |
| Noise Reduction | 2D noise reduction
3D noise reduction |
Noise Reduction | 2D noise reduction
3D noise reduction |
|
|
5,Including:
White Hot, Black Hot, Ironbow, Arctic, Rainbow HC |
Minimum Illumination | Color: 0.05Lux@
(F15, shutter time: 1/30s) (F15, shutter time: 1/30s) |
|
| Temperature Range | 20℃～45℃ | Power Supply Mode | DC12V±20%，POE(802.3af),ePOE | |
| Accuracy | Without black body:±0.3℃
With black body:±0.1℃ |
White Balance | Automatic/indoor/outdoor/tracking/manual/sodium lamp/natural light/street lamp | |
| Operating/Storage Temperature Range | 0℃～40℃/-20℃～60℃ | Consumption | ＜50W(DC12V, Basic power consumption)
＜12W(DC12V, Maximum power consumption, Adapter not included) |
|
| Detection Range | 1-3m | Close Range of Visible Light | 0.2m | |
Note:
The SEDT-N2 is the preliminary temperature screening and disinfection system, which does not diagnose if someone has corona-virus, but could help determine if someone has an elevated temperature and needs further attention or detection.
